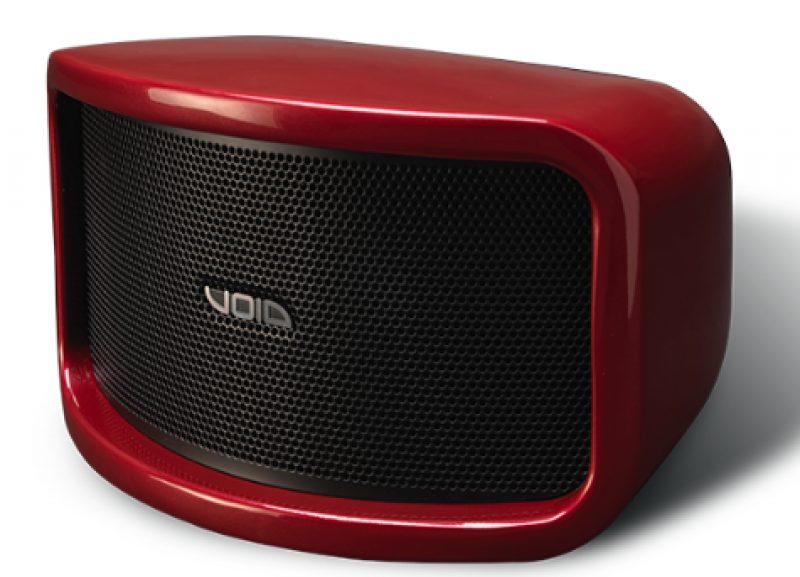

Cyclone55

•

功能說明

• Frequency response: 70 Hz - 23 kHz ±3 dB
• Efficiency1: 92 dB 1W/1m
• Crossover points: 3.6 kHz passive
• Nominal impedance: 16 Ω
• Power handling2: 120 W AES
• Maximum output3: 112 dB cont, 118 dB peak
• Driver configuration: 2 x 5” LF, 2 x 1” soft dome HF tweeters
• Dispersion: 110°H x 70°V
• Connectors: Phoenix connectors with link out
• Weight: 3.2 kg (7.1 lbs)
• Enclosure: Fibreglass
• IP rating: IP-55 (BS EN 60529:1992 +A2:2013)
• Rigging: Wall bracket included, type 51 plate
• Finish: Smooth cellulose

1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
