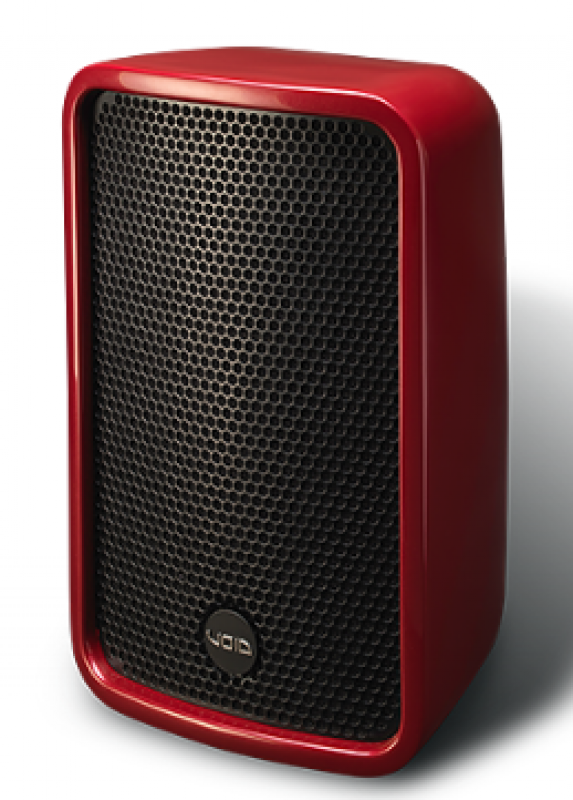

Cyclone10

•

功能說明

• Frequency response: 52 Hz - 22 kHz ±3 dB
• Efficiency1: 97 dB 1W/1m
• Crossover points: 2.1 kHz passive
• Nominal impedance: 8 Ω
• Power handling2: 350 W AES
• Maximum output3: 122 dB cont, 128 dB peak
• Driver configuration: 1 x 10” LF, 1 x 1” HF compression driver
• Dispersion: 90°H x 60°V
• Connectors: Phoenix connectors with link out
• Weight: 14.5 kg (32 lbs)
• Enclosure: Fibreglass
• IP rating: IP-55 (BS EN 60529:1992 +A2:2013)
• Rigging: Optional Easy Hang XL wall bracket
• Finish: Smooth cellulose

1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
