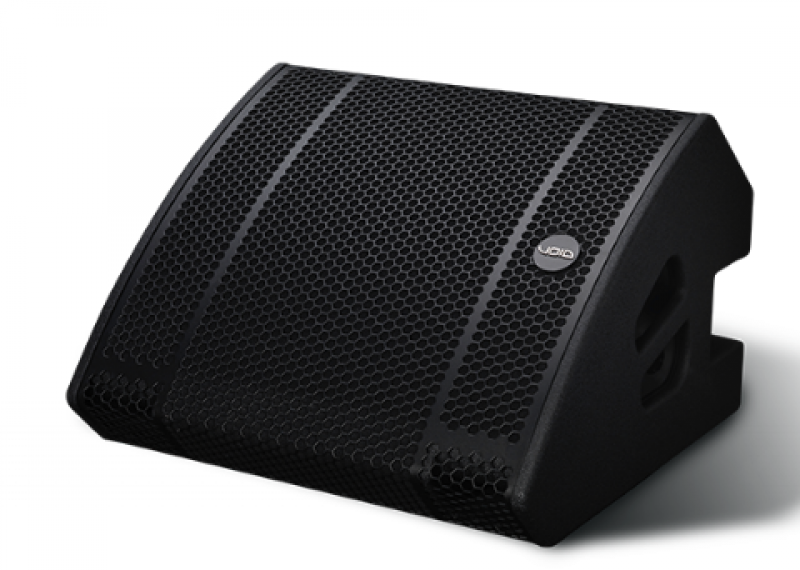

ArcM15
功能說明
- Frequency response: 50 Hz - 18 kHz ±3 dB
- Efficiency1: 100 dB 1W/1m
- Crossover point: 1.2 kHz (passive)
- Nominal impedance: 1 x 8 Ω passive, 1 x 8 Ω (LF) and 1 x 16 Ω (HF) active
- Power handling2: 500 W AES
- Maximum output3: 126 dB cont, 132 dB peak
- Driver configuration: Coaxial 1 x 15” - 1 x 1.4” neodymium
- Dispersion: 80°H x 80°V
- Connectors: 2 x 4-pole speakON™ NL4
- Height: 371 mm (14.6”)
- Width: 550 mm (21.7”)
- Depth: 530 mm (20.9”)
- Weight: 22.5 kg (49.6 lbs)
- Rigging: Integral top hat, type 80 mounting bracket
- Finish: Textured polyurea
1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
