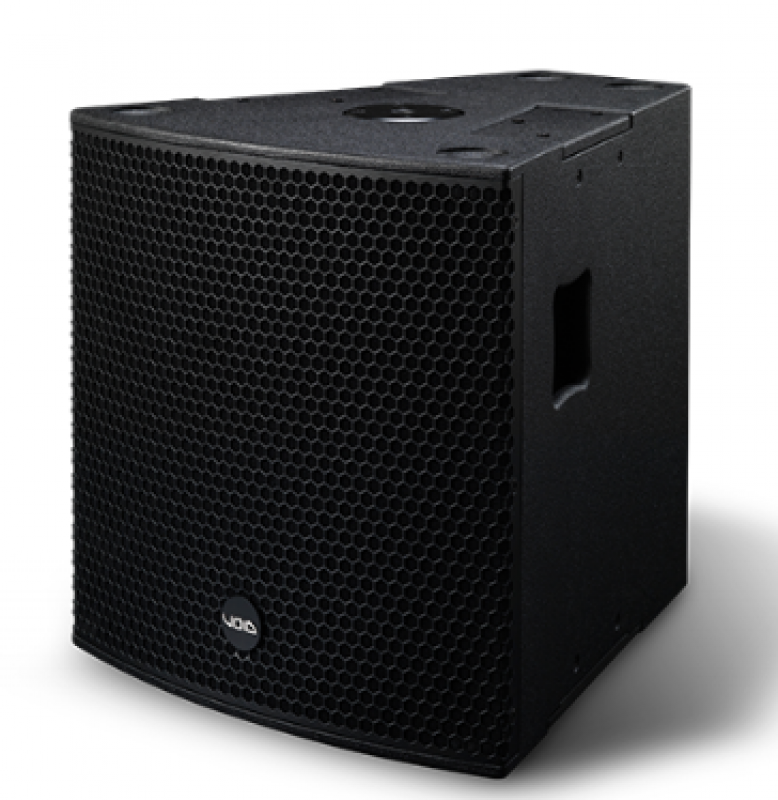

Arclite15B
功能說明
- Frequency response: 45 Hz - 569 Hz ±3 dB
- Efficiency1: 98 dB 1W / 1M
- Crossover Points: 80 Hz - 569 Hz active
- Nominal Impedance: 8 Ω
- Power handling2: 1000 W
- Maximum output3: 133 dB Cont, 139 Peak
- Driver configuration: 1 x 15” LF
- Connectors: 2 x 4-pole speakON™ NL4
- Weight: 28.5 kg (63 lbs)
- Enclosure: 15 mm birch plywood
- Mounting: M20 top hat. Optional Arclite Rigging
- Finish: Textured ‘TourCoat’ polyurea
- Grille: Perforated steel with foam filter
1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
