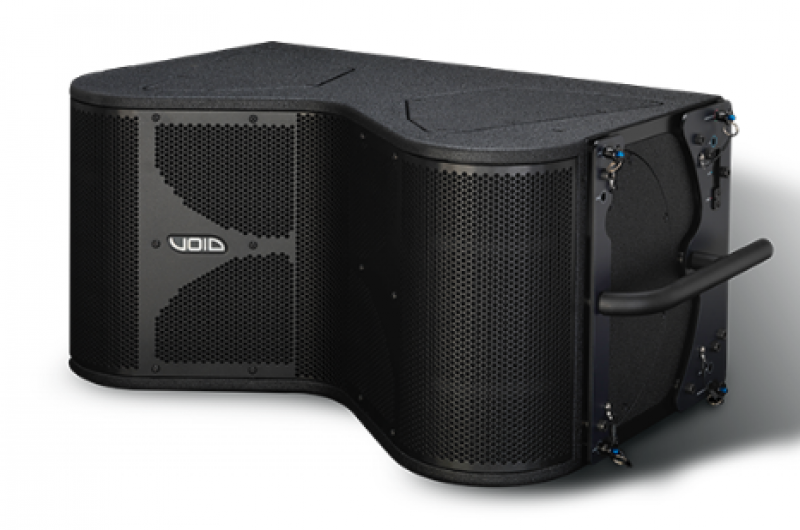

Arcline212

•

功能說明

• Frequency response: 50 Hz - 200 Hz
• Efficiency1: 99 dB 1W/1m
• Nominal impedance: 2 x 8 Ω
• Power handling2: 2 x 900 W AES
• Maximum output3: 131 dB cont, 137 dB peak
• Driver configuration: 2 x 12” low frequency drivers
• Dispersion: Array dependant
• Connectors: 2 x 4-pole speakON™ NL4
• Weight: 42 kg (92.6 lbs)
• Enclosure: 15 mm multi-laminate plywood
• Rigging: 304 stainless steel rigging for use with Arcline 8 when flown or ground stacked
• Finish: Textured TourCoat polyurea
• Grille: Perforated steel with foam filler

1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
