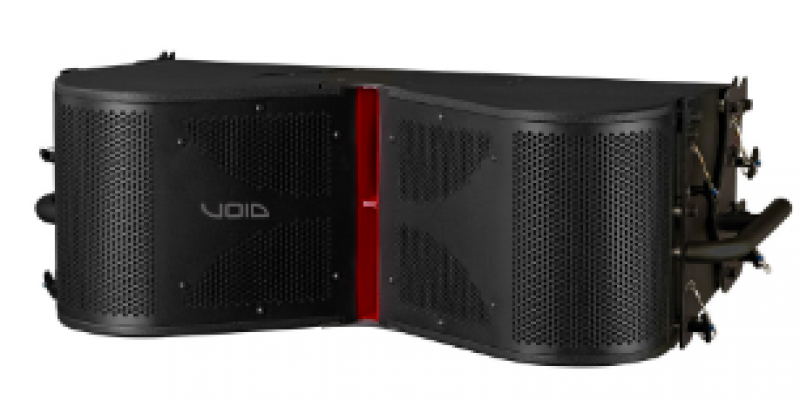

Arcline 8

•

功能說明

• Frequency response: 110 Hz - 20 kHz single enclosure, 90 Hz - 20 kHz three enclosures
• Efficiency1: LF: 100 dB | MF/HF: 106 dB 1W/1m
• Nominal impedance: 2 x 16 Ω
• Power handling2: LF: 500 W AES, HMF: 500 W AES
• Maximum output3: 132 dB cont, 138 dB peak
• Driver configuration: 2 x 1.4” compression drivers, 2 x 8” mid drivers with phase device, 2 x 8” horn loaded low frequency drivers
• Dispersion: 110°H x 12°V
• Protection: Internal electronic control
• Connectors: 2 x 4-pole speakON™ NL4
• Weight: 39 kg (86 lbs)
• Enclosure: 15 mm multi-laminate plywood
• Rigging: angle pre-selected before you lift the enclosures, ground stackable
• Finish: Textured ‘TourCoat’ polyurea
• Grille: Perforated steel with foam filter

1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
