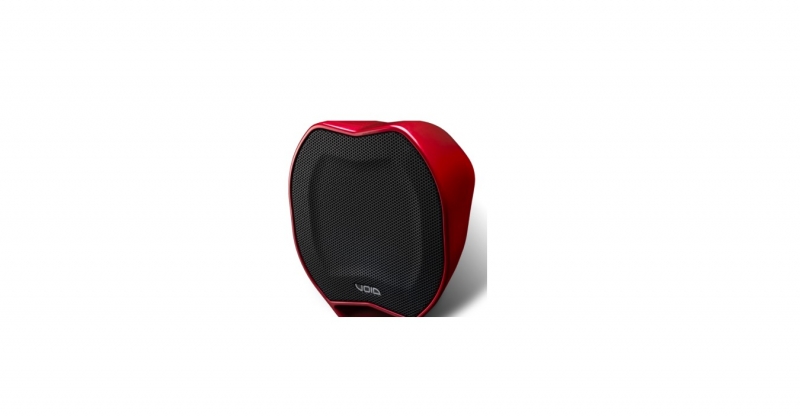

Air12

•

功能說明

• Frequency response: 75 Hz - 20 kHz
• Efficiency1: 98 dB 1W / 1M
• Nominal impedance: 8 Ω
• Power handling2: 400 W AES
• Maximum output3: 124 dB cont, 130 dB peak
• Driver configuration: 1 x 12”, 1 x 1” Coaxial
• Dispersion: 80° H x 80° V nominal coverage
• Connectors: 1 x Phoenix connector with link out
• Height: 424mm (17 inch)
• Width: 367mm (14 inch)
• Depth: 329mm (13 inch)
• Weight: 12.5 kg (27.6 lbs)
• Enclosure: Fibreglass composite
• Mounting: T80-style mounting, low profile flush-mount bracket included
• Grille: Perforated aluminium with foam filter and hydrophobic membrane
• Colour: Void Red, Black and White finishes, with RAL and Krome options upon request
• IP rating: IP-54
• Recommended Amplifier: Q1.5+ or higher

• 1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
